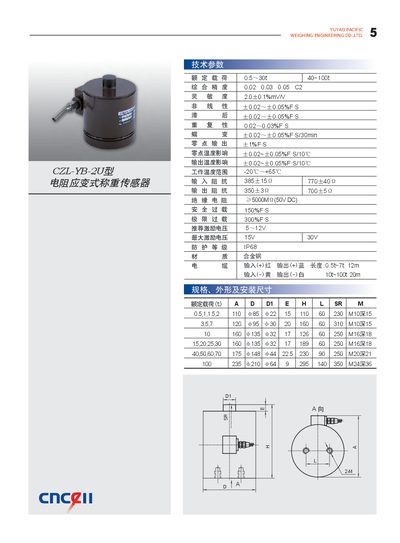

This document introduces the specifications, dimensions, and installation dimensions of CNCELLS, as well as the features of the strain gauge load cell, such as rated load, accuracy, sensitivity, and temperature influence.
The CZL-YB-2U is a resistance strain weight sensor designed for precise load measurement in industrial weighing applications. It offers high accuracy and stability across a wide temperature range.
Key specifications include an excitation voltage of 5‑12 V, a maximum excitation of 15 V, IP68 protection, a safety factor of 150 %, and an overload limit of 300 %. The sensor is suitable for environments with temperatures from –20 °C to +65 °C. This manual is written in Japanese.
| Excitation voltage | 5‑12 V |
|---|---|
| Maximum excitation voltage | 15 V |
| Protection rating | IP68 |
| Safety factor | 150 % |
| Overload limit | 300 % |
The sensor operates with an excitation voltage between 5 V and 12 V.
The maximum excitation voltage is 15 V.
The sensor is rated IP68 for protection against dust and water.
The safety factor is specified as 150 %.
