The CZL-YB-2CG strain gauge load cell has the characteristics of high sensitivity, good linearity, small nonlinearity, small lag, good repeatability, small creep, stable output, small zero drift, strong overload capacity and long service life.

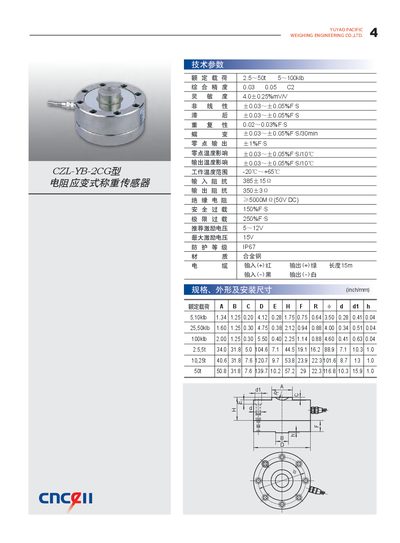

This document details the technical specifications and operating limits of the CZL-YB-2CG resistance strain weight sensor. It includes rated load, accuracy, sensitivity, non‑linearity, hysteresis, temperature effects, and safety ratings.
The manual also outlines environmental conditions such as the operating temperature range of –20 °C to +65 °C, the IP67 protection rating, excitation voltage requirements, and recommended installation practices. This manual is written in Chinese.
| Rated load | 2.5–50 t |
|---|---|
| Protection rating | IP67 |
| Maximum excitation voltage | 15 V |
| Impedance | 350 Ω ±39 Ω |
| Safety factor | 150 %FS |
The sensor is rated for loads from 2.5 t up to 50 t.
The sensor is protected to an IP67 rating.
The maximum excitation voltage is 15 V.
