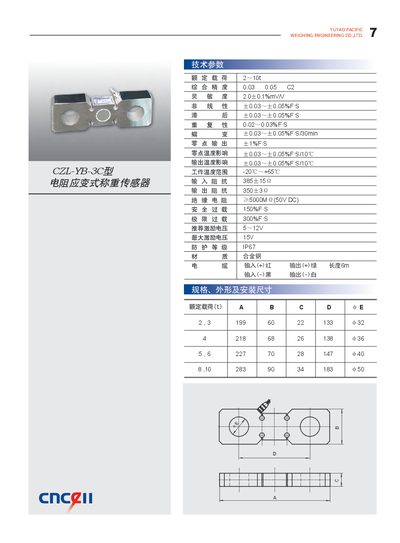

CZL-YB-3C type resistance strain type load cell technical parameters
The CT7PB-3C resistance strain weight sensor from Yuyad Pacific is designed for load measurement ranging from 2 t to 10 t. It offers high accuracy, low hysteresis, and robust environmental protection, making it suitable for industrial weighing applications.
The sensor operates within a temperature range of –20 °C to +65 °C, supports a recommended excitation voltage of 5‑12 V (max 15 V), and features IP67 protection. Detailed electrical parameters such as input/output impedance, insulation resistance, and overload limits are provided for proper integration. This manual is written in Chinese.
| Rated Load | 2–10 t |
|---|---|
| Overall Accuracy | 0.03–0.05% FS |
| Sensitivity | 2.0 ± 0.19 % mV/V |
| Non‑linearity | 0.03–0.05% FS |
| Hysteresis | 0.03–0.05% FS |
| Temperature Coefficient (Zero Point) | 0.03–0.05% FS/10 °C |
| Working Temperature Range | -20 °C to +65 °C |
| Input Impedance | 385 Ω |
| Output Impedance | 350 Ω |
| Insulation Resistance | 5000 MΩ (50 V DC) |
| Recommended Excitation Voltage | 5–12 V |
| Maximum Excitation Voltage | 15 V |
| Protection Level | IP67 |
The sensor is rated for loads from 2 t up to 10 t.
A recommended excitation voltage of 5 V to 12 V is specified, with a maximum of 15 V.
The sensor has an IP67 protection rating.
It can operate from –20 °C to +65 °C.
