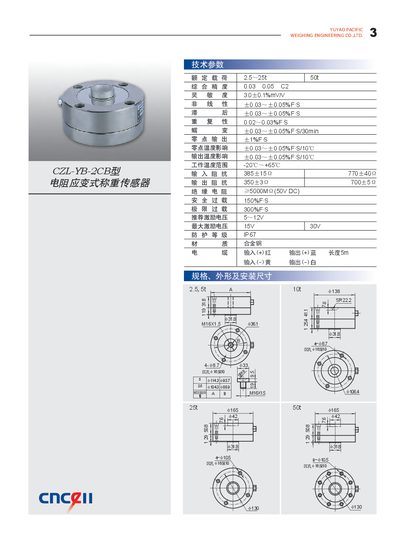

CZL-YB-2CB type resistance strain gauge load cell is a kind of CZL-YB-2CB series. The sensor has the characteristics of good stability, high precision, strong reliability, good repeatability, small creep, small zero-point temperature drift, and is widely used in various electronic scales and weighing equipment.
This document lists the technical parameters of the CZL‑YB‑2CB resistance strain weight sensor, including its rated load of 2.5–25 t, accuracy, sensitivity, non‑linearity, hysteresis, repeatability, and temperature coefficients. Electrical characteristics such as output and input impedance, excitation voltage range, and IP67 protection are also detailed.
Installation notes cover the recommended working temperature range of –20 °C to +65 °C, material construction (alloy steel), and safety limits. The sensor is designed for use in weighing applications where high precision and environmental robustness are required. This manual is written in Chinese.
| Rated Load | 2.5–25 t |
|---|---|
| Full‑Scale Accuracy | 0.03–0.05 % FS |
The sensor can measure loads from 2.5 t up to 25 t.
