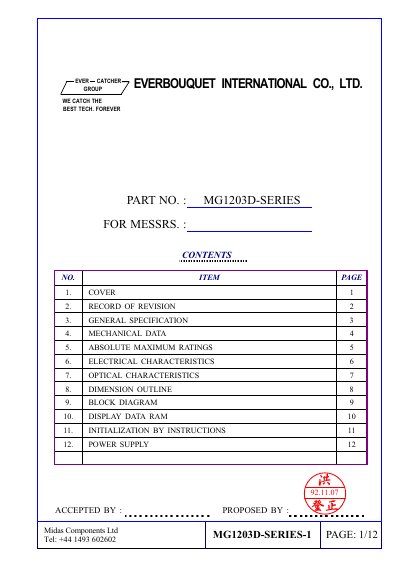

The MG1203D series LCD modules are 122 × 32 dot displays with a module size of 68.0 mm × 31.75 mm and various backlight options (EL or LED). The document provides detailed mechanical dimensions, absolute maximum ratings, electrical and optical characteristics, as well as pin‑out and initialization instructions.
Key features include a 5.0 V logic supply (4.75‑5.25 V typical), input voltage range 0‑6 V, viewing angles up to 40°, contrast ratios around 1000, and operating temperature from –20 °C to 70 °C. The datasheet also contains block diagrams, RAM mapping and power supply recommendations for both logic and backlight circuits. This manual is written in Chinese.
| Number of dots | 122 W × 32 H |
|---|---|
| Module size | 68.0 mm × 31.75 mm |
| Effective area | 57.2 mm × 17.7 mm |
| Active area | 52.42 mm × 13.72 mm |
| Dot size | 0.39 mm × 0.39 mm |
| Dot pitch | 0.43 mm |
| Logic supply voltage (VDD‑VSS) | 5.0 V (typical 4.75‑5.25 V) |
| Input voltage range | 0 V – 6.0 V |
| VIH (high level input) | 2.0 V |
| VIL (low level input) | 0 V – 0.8 V |
| Operating temperature range | –20 °C to 70 °C |
| Backlight types | EL backlight, LED backlight |
The module uses a 5.0 V logic supply, with a typical range of 4.75 V to 5.25 V.
The module measures 68.0 mm in width and 31.75 mm in height.
The module is rated for ambient temperatures from –20 °C up to 70 °C.
Both EL (electroluminescent) and LED backlights are supported.
