The Fairchild FQPF16N15 is a 150 V N‑Channel enhancement‑mode MOSFET built with planar stripe DMOS technology. It offers low on‑resistance, fast switching, and high avalanche capability, making it suitable for audio amplifiers, DC‑DC converters, and motor‑control applications.

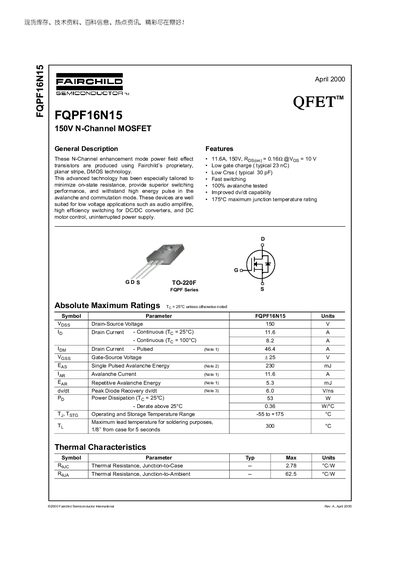

The document provides absolute maximum ratings, detailed electrical characteristics, typical performance curves, and mechanical dimensions for the TO‑220F package, along with trademark and disclaimer information.
| Drain‑Source Voltage (VDS) | 150 V |
|---|---|
| Continuous Drain Current (Id) @ 25 °C | 11.6 A |
| Pulsed Drain Current (Id) (Note 1) | 46.4 A |
| Gate‑Source Voltage (VGS) | ±25 V |
| On‑Resistance (RDS(on)) @ VGS=10 V | 0.162 Ω (typ) |
| Total Gate Charge (Qg) | 23 nC (typ) |
| Input Capacitance (Ciss) | 700 pF (typ) |
| Output Capacitance (Coss) | 145 pF (typ) |
| Power Dissipation (PD) @ 25 °C | 53 W |
| Junction‑to‑Case Thermal Resistance (RθJC) | 2.78 °C·W |
| Maximum Junction Temperature (Tj) | 175 °C |
| Package Type | TO‑220F |
The maximum continuous drain current at 25 °C is 11.6 A.
The on‑resistance is 0.162 Ω typical at VGS = 10 V.
The device is rated for a maximum junction temperature of 175 °C.
It is supplied in a TO‑220F package.
