The 33886 is a monolithic H-Bridge ideal for fractional horsepower DC-motor and bi-directional thrust solenoid control.
The MC33886 is a monolithic H‑Bridge designed for fractional‑horsepower DC‑motor and bi‑directional thrust‑solenoid control. It integrates control logic, a charge pump, gate drivers and low‑RDS(on) MOSFET outputs, supporting continuous inductive loads up to 5 A and PWM frequencies up to 10 kHz. The device operates from 5 V to 40 V supply voltage and is available in a 20‑terminal HSOP package with an exposed pad for heatsinking.

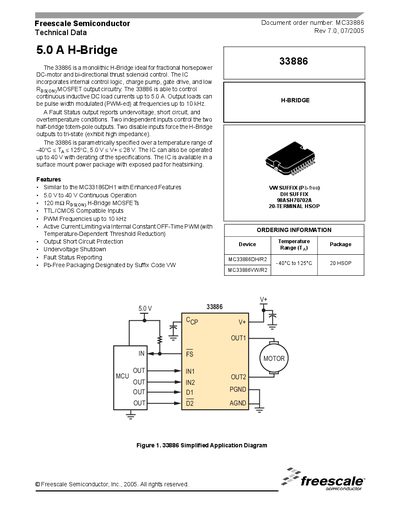

The datasheet provides detailed electrical characteristics, maximum ratings, timing diagrams, and pin definitions. It also includes ordering information, fault‑status behavior, and contact details for Freescale technical support.
| Continuous Output Current | 5.0 A |
|---|---|
| Supply Voltage Range | 5.0 V – 40 V |
| Ambient Operating Temperature | -40 °C to 125 °C |
| Package | 20‑terminal HSOP |
| Fault Status Output Type | Open‑drain, pull‑up to 5.0 V required |
The device can continuously drive up to 5.0 A.
It operates from 5.0 V up to 40 V.
The ambient operating temperature range is –40 °C to 125 °C.
