This document introduces the 56F8000 16-bit Digital Signal Controllers from Freescale, focusing on the architecture and connections of the 56F8037 Evaluation Module.

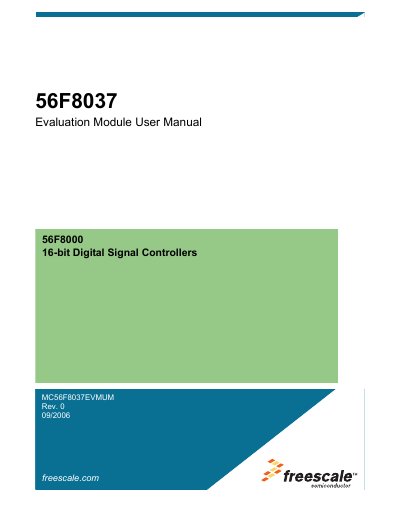

This manual describes the hardware of the Freescale 56F8037 Evaluation Module (EVM) in detail. It is intended for application developers creating software for devices using the Freescale 56F8037 part or compatible members of the 56F8000 family.
The document includes an introduction to the module, a technical summary of its features, connection diagrams for USB, +9 V and +3.3 V power sources, and appendices with schematics and a bill of material.
| Controller family | 16-bit Digital Signal Controller |
|---|---|
| Crystal frequency | 8.000 MHz |
| Typical power supply current | 450 mA |
It describes the hardware of the 56F8037EVM in detail for application developers.
The schematics are provided in Appendix A of the manual.
