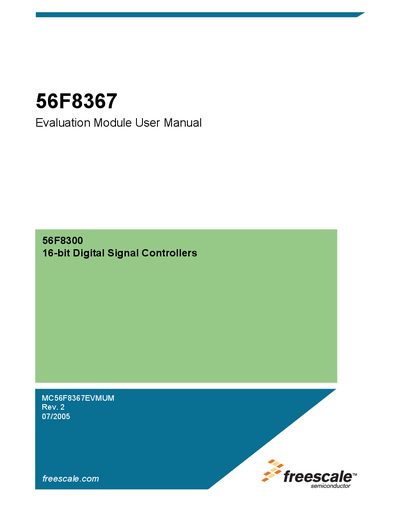

56F8367 Evaluation Module User Manual introduces the architecture, configuration jumpers and connections of the evaluation module.
This manual provides a detailed description of the MC56F8367EVM evaluation module, including its architecture, jumper settings, connector pinouts, and supported interfaces such as RS‑232, CAN, and JTAG. It also contains schematics, a bill of material, and test point information for developers.
Additional sections cover power supply requirements, operating modes, debug LED functions, and software feature jumpers, helping users set up and troubleshoot the 56F8367 digital signal controller on the evaluation board.
Contact Freescale Semiconductor via the support email or phone numbers listed in the manual.
The schematics are provided in Appendix A of the manual.
