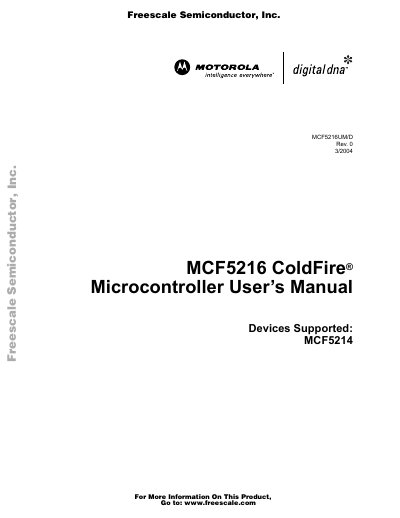

Freescale MCF5216 Microcontroller User Manual

About this manual

This manual describes the MCF5216 ColdFire® microcontroller, covering its core processor, peripheral modules such as EMAC, cache, SRAM, flash, power management, system control, clock, interrupt controller, edge‑port, chip‑select, external interface, and signal descriptions. Each chapter includes functional overviews, register maps, and programming models.

Technical specifications are presented in dedicated tables, including DC electrical characteristics, PLL parameters, QADC ratings, flash programming details, and timing specifications for all peripheral interfaces. The document also contains an index and extensive cross‑references for design engineers.

What's inside

• Overview
• ColdFire Core
• Enhanced Multiply‑Accumulate Unit (EMAC)
• Cache
• Static RAM (SRAM)
• ColdFire Flash Module (CFM)
• Power Management
• System Control Module (SCM)
• Clock Module
• Interrupt Controller Modules

Specifications

Frequently asked questions

What is the input high voltage level for the MCF5216?

The input high voltage is specified as 0.7 times the supply voltage (VDD).

What supply voltage range does the MCF5216 support?

The device operates with a supply voltage between 2.7 V and 3.6 V.
