The MCF5207 and MCF5208 devices are highly-integrated, 32-bit microprocessors based on the version 2 ColdFire microarchitecture. They have various peripherals and features, suitable for industrial control and connectivity applications.

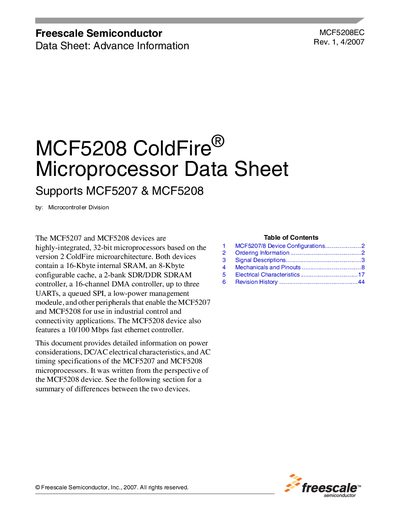

The MCF5208 ColdFire® microprocessor is a highly‑integrated 32‑bit device featuring a 16‑Kbyte internal SRAM, 8‑Kbyte cache, Ethernet controller, DMA, UARTs, SPI, and power‑management module for industrial control and connectivity applications. This data sheet focuses on the MCF5208, with a brief comparison to the related MCF5207.
The document includes device configurations, ordering information, detailed signal descriptions with pin multiplexing, mechanical drawings and package options, electrical characteristics, revision history, and contact information for Freescale technical support.
| Core Clock Frequency | up to 166.67 MHz |
|---|---|
| Peripheral and External Bus Clock | up to 83.33 MHz |
| Internal SRAM | 16 Kbytes |
| Instruction/Data Cache | 8 Kbytes |
| Package Options | 144‑LQFP, 160‑QFP, 144‑MAPBGA, 196‑MAPBGA |
| Ethernet Controller | 10/100 Mbps Fast Ethernet |
The core (system) clock can run up to 166.67 MHz.
It includes 16 Kbytes of static RAM.
Yes, it includes a 10/100 Mbps fast Ethernet controller.
The device is offered in 144‑LQFP, 160‑QFP, 144‑MAPBGA, and 196‑MAPBGA packages.
