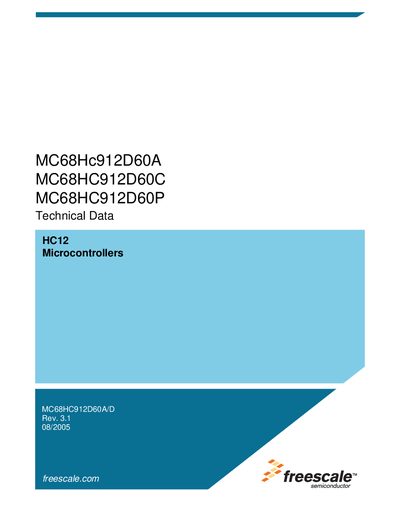

This document provides technical data on Freescale's HC12 microcontroller products MC68HC912D60A/D, including the features and characteristics of MC68HC912D60A, MC68HC912D60C, and MC68HC912D60P.
This handbook supplies detailed technical information for the Freescale MC68HC912D60A microcontroller, covering its architecture, pin assignments, memory options, and peripheral functions. It is intended for system designers and software developers who need to integrate the HC12 device into their applications.
The document is organized into sections such as General Description, CPU core, Pinout and Signal Descriptions, Registers, Operating Modes, Bus Control, Flash and EEPROM memory, timers, serial interfaces, and various analog and digital peripherals. Appendices provide additional practical guidance, change history, and contact information for Freescale support.
Support can be reached via email at [email protected] or by phone using the numbers listed for each region in the document.
