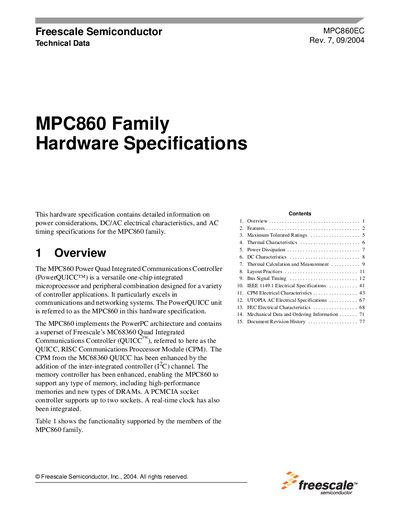

This document is a hardware specification for Freescale MPC860 Power Quad Integrated Communications Controller (PowerQUICC™)
The MPC860 PowerQUICC family is a versatile one‑chip integrated communications controller that combines a PowerPC core with a rich set of peripherals. This hardware specifications handbook describes the power considerations, DC/AC electrical characteristics, and timing specifications for the entire MPC860 family.
Key sections include features and cache details, maximum tolerated ratings, thermal characteristics, power dissipation data, and DC electrical specifications, along with mechanical data and ordering information. The document also provides contact information for Freescale technical support.
| Supply voltage range | -0.3 V to 4.0 V (Vppu) |
|---|---|
| Package type | 357‑pin ball grid array (BGA) |
| Maximum clock frequency | 80 MHz |
The MPC860 supports two independent PCMCIA sockets.
The device can operate with a supply voltage (Vppu) from –0.3 V up to 4.0 V.
The MPC860 can run at frequencies up to 80 MHz.
