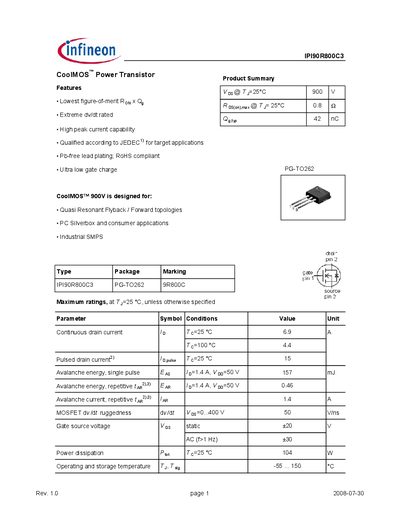

IPI90R800C3 CoolMOS™ Power Transistor is designed for Quasi Resonant Flyback / Forward topologies, PC Silverbox and consumer applications as well as Industrial SMPS applications. It features lowest RONxQg, extreme dv/dt rating, high peak current capability, qualified according to JEDEC1) for target applications, lead-free lead plating; RoHS compliant, and ultra low gate charge.
The IPISOR800C3 is a 900 V CoolMOS power transistor designed for quasi‑resonant flyback, forward topologies, PC power supplies, consumer and industrial SMPS applications. The document provides a detailed product summary, maximum ratings, thermal and electrical characteristics, as well as dynamic and gate‑charge data.
Key sections include maximum ratings (continuous and pulsed drain current, avalanche energy), thermal resistance values, static and dynamic electrical parameters, and package dimensions. Legal and safety notices are also included at the end of the sheet.
| Continuous drain current (Id) | 6.9 A |
|---|---|
| Pulsed drain current (Ipp) | 15 A |
The continuous drain current is rated at 6.9 A at 25 °C.
The pulsed drain current can reach 15 A at 25 °C.
