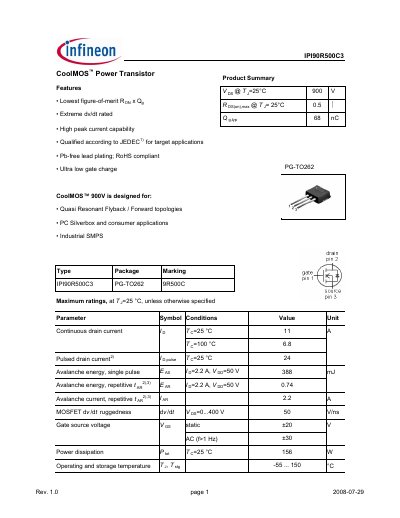

IPI90R500C3 CoolMOS™ Power Transistor features the lowest RON x Qg, extreme dv/dt rating, high peak current capability, qualified according to JEDEC1) for target applications, Pb-free lead plating; RoHS compliant, ultra low gate charge.
The IPI90R500C3 is a 900 V CoolMOS power transistor designed for quasi‑resonant flyback/forward topologies, PC Silverbox, consumer and industrial SMPS applications. It offers a low RON × Qg figure‑of‑merit, high dv/dt capability, and high peak current handling.
The document provides maximum ratings, thermal and electrical characteristics, dynamic switching parameters, gate‑charge data, typical output curves, and package dimensions. It also includes safety and legal notices, confirming RoHS compliance and usage restrictions for life‑support devices.
| Maximum on‑state resistance (RDS(on)) | 0.5 Ω |
|---|---|
| Junction‑to‑case thermal resistance (RthJC) | 0.8 K/W |
| Package type | PG‑TO262 |
| RoHS compliance | Yes |
It is supplied in a PG‑TO262 package.
Yes, it is Pb‑free and RoHS compliant.
