PROFET® BTS612N1 is a smart two channel highside power switch with features including overload protection, current limitation, short circuit protection, thermal shutdown, overvoltage protection, fast demagnetization of inductive loads, reverse battery protection, undervoltage and overvoltage shutdown with auto-restart and hysteresis, open drain diagnostic output, open load detection in OFF-state, CMOS compatible input, loss of ground and loss of Vbb protection, electrostatic discharge (ESD) protection.
The Infineon BTS612N1 is a smart two‑channel high‑side power switch designed for 12 V and 24 V DC loads. It integrates overload, over‑voltage, short‑circuit, thermal shutdown, reverse‑battery and ESD protection, making it a direct replacement for electromechanical relays, fuses and discrete circuits.

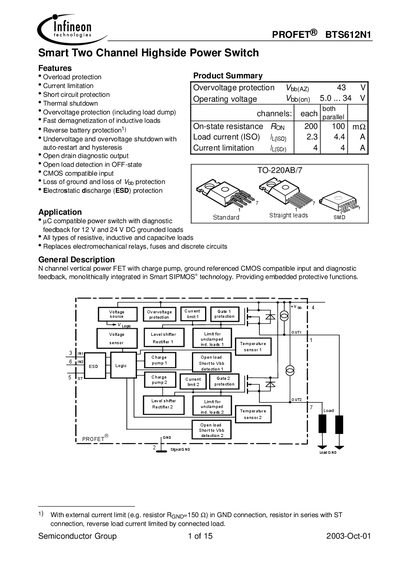

The document provides detailed pin definitions, maximum ratings, thermal and electrical characteristics, protection function specifications, and package information for the TO‑220AB/7 form factor. It also includes truth tables and diagnostic output details for system integration.
| Package type | Standard TO‑220AB/7 |
|---|
The BTS612N1 provides two independent high‑side power channels.
It is supplied in a standard TO‑220AB/7 package.
