IPA90R800C3 CoolMOS™ Power Transistor has the lowest figure-of-merit RON x Qg and extreme dv/dt rating, as well as high peak current capability. It is qualified according to JEDEC1) for target applications, and it is lead-free and RoHS compliant.
The IPA90R800C3 is a CoolMOS 900 V power transistor designed for quasi‑resonant flyback, forward topologies, PC power supplies, consumer and industrial SMPS applications. It offers a low figure‑of‑merit Rds(on)·Qg, ultra‑low gate charge, high peak current capability and is RoHS compliant.

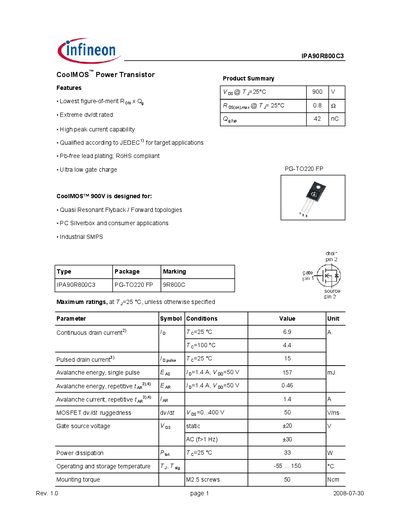

The document lists the device's electrical, thermal and dynamic characteristics, including maximum ratings such as 6.9 A continuous drain current, 900 V drain‑source breakdown voltage, 33 W power dissipation, and a junction‑to‑case thermal resistance of 3.8 K/W. Package dimensions for the PG‑TO220 FP outline are also provided.
