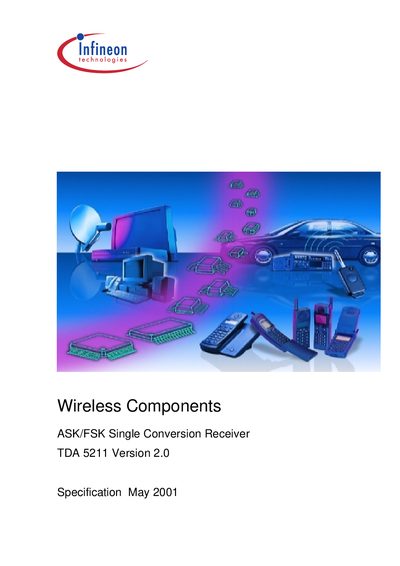

This document is about the specification of TDA 5211
The TDA 5211 is a very low‑power single‑chip FSK/ASK super‑heterodyne receiver for 310‑350 MHz. It integrates a low‑noise amplifier, double‑balanced mixer, VCO, PLL synthesiser, crystal oscillator, limiter with RSSI generator, FSK demodulator, data filter, data slicer and peak detector, plus a power‑down feature for battery‑saving operation.
Typical applications include keyless entry systems, remote‑control devices, alarm systems and low‑bitrate communication links. The device is supplied in a 28‑pin TSSOP package and operates over a temperature range of –40 °C to +105 °C.
| Supply voltage range | 5 V ± 10 % |
|---|---|
| Supply current (ASK mode) | 5 mA typ. |
| Power‑down current | 50 nA typ. |
| Receive frequency range | 310‑350 MHz |
| ASK sensitivity | -110 dBm (typ.) |
| FSK sensitivity | -102 dBm (typ.) |
| Package type | P‑TSSOP‑28‑1 |
| Operating temperature range | -40 °C to +105 °C |
The device operates from 5 V with a ±10 % tolerance.
In power‑down mode the typical current consumption is 50 nA.
It is suited for keyless entry, remote‑control, alarm and low‑bitrate communication systems.
The IC is supplied in a 28‑pin P‑TSSOP‑28‑1 package.
