The BSM 200 GB 120 DN2 is an IGBT module produced by Bosch. Its maximum ratings are Vce of 1200V and IC of 290A.
The BSM200GB120DN2 is a 1200 V, 290 A half‑bridge IGBT power module with integrated fast free‑wheeling diodes. It features an insulated metal base plate and is designed for high‑power applications requiring robust thermal performance.

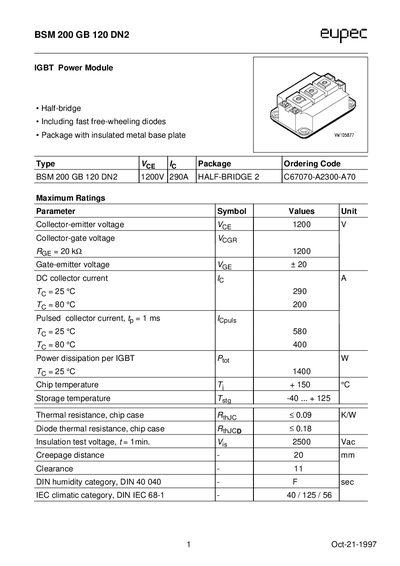

The document provides maximum ratings, electrical and switching characteristics, typical output curves, gate charge data, and thermal impedance information, along with usage terms and conditions for technically trained personnel.
| Collector‑emitter voltage (VCE) | 1200 V |
|---|
The module can withstand up to 1200 V collector‑emitter voltage.
