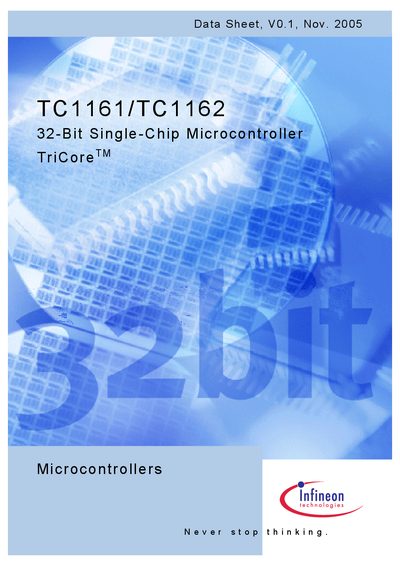

This document is about TC1161/TC1162 32-Bit Single-Chip Microcontroller TriCoreTM
The TC1161/TC1162 is a 32‑bit single‑chip microcontroller based on Infineon's TriCore™ architecture. It offers a General Purpose Timer Array, 16‑channel ADC, 2‑channel fast ADC, 32 analog inputs, 81 digital I/Os, and supports core and I/O voltages of 1.5 V and 3.3 V respectively.
The datasheet details a summary of features, general device information, functional description, electrical parameters, packaging specifications, and quality declarations, helping designers evaluate the device for industrial and multi‑market applications.
| Core supply voltage | 1.5 V |
|---|---|
| I/O voltage | 3.3 V |
| Operating temperature range | -40°C to +85°C |
| ADC channels | 16 channels |
| Package type | PG-LQFP-176-2 |
The core supply voltage is 1.5 V.
It provides 32 analog input lines.
The device operates from –40 °C to +85 °C.
It is supplied in a PG‑LQFP‑176‑2 package.
