IPW50R350CP is a power transistor that has the latest technology, the lowest RON x Qg, the ultra-low gate charge, extreme dv/dt and other characteristics. This product is suitable for hard switching and soft switching SMPS topologies, CCM PFC for Lamp Ballast, LCD and PDP TV and PWM for Lamp Ballast, LCD and PDP TV.

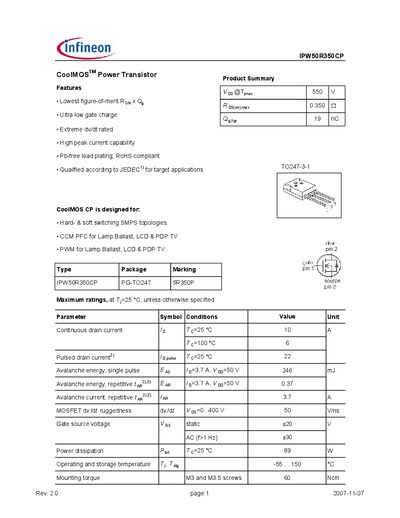

The IPW50R350CP is a CoolMOS CP power transistor designed for hard‑ and soft‑switching SMPS topologies, including CCM PFC and PWM applications such as lamp ballast, LCD and PDP TV. It is supplied in a TO‑247‑3‑4 package and complies with RoHS and JEDEC standards.
The document lists maximum ratings, thermal and electrical characteristics, typical output and gate‑charge curves, as well as mechanical dimensions. For detailed design information, refer to the specification tables and characteristic graphs included in the datasheet.
| Package | TO‑247‑3‑4 (PG‑TO247) |
|---|
The transistor is supplied in a TO‑247‑3‑4 (PG‑TO247) package.
