The IPW90R500C3 is a CoolMOS™ 900V power transistor with the lowest figure-of-merit RON x Qg, extreme dv/dt rating, high peak current capability, and Pb-free lead plating; RoHS compliance; ultra low gate charge
The IPW90R500C3 is a 900 V CoolMOS power transistor designed for quasi‑resonant flyback, forward topologies, PC power supplies, consumer and industrial SMPS applications. It offers low on‑resistance, high peak current capability, and ultra‑low gate charge.

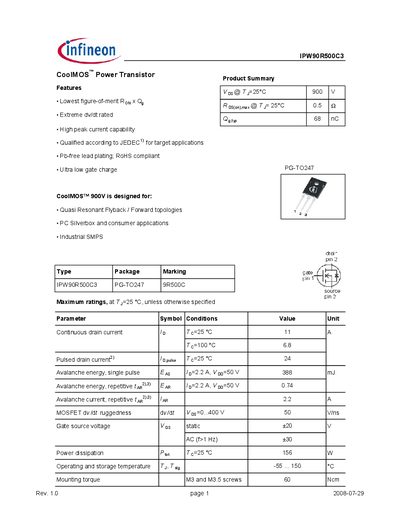

The document lists maximum ratings, thermal and electrical characteristics, dynamic parameters, and typical output and gate‑charge curves, along with mechanical dimensions and legal disclaimer information.
| Continuous drain current (Id) at 25 °C | 11 A |
|---|---|
| Pulsed drain current (Id) at 25 °C | 24 A |
| Avalanche energy, single pulse | 388 mJ (2.2 A, Vpp=50 V) |
| Thermal resistance, junction‑to‑case | 0.8 K/W |
The continuous drain current is rated at 11 A at 25 °C.
A single pulse avalanche energy of 388 mJ is specified at 2.2 A and Vpp = 50 V.
The junction‑to‑case thermal resistance is 0.8 K/W.
