IKA15N60T is a 600V IGBT with soft recovery anti-parallel EmCon HE diode, max. junction temperature is 175 °C, and short circuit withstand time is -5µs.

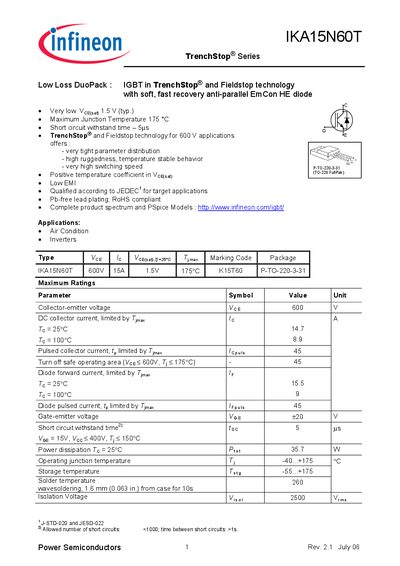

The IKA15N60T is part of Infineon's TrenchStop® Series of low‑loss IGBTs designed for 600 V applications such as air‑conditioners and inverters. The document lists maximum ratings, thermal resistance values and typical electrical characteristics, and includes detailed switching performance graphs.
Key specifications include a collector‑emitter voltage of 600 V, a typical saturation voltage of 1.5 V at 25 °C, and a short‑circuit withstand time of 5 µs. Thermal resistance from junction to case is 4.2 K/W, and the device can dissipate up to 35.7 W at 25 °C. The datasheet also provides gate‑emitter voltage limits, diode recovery data, and typical switching energy loss curves.
| Collector‑emitter voltage (VCE) | 600 V |
|---|---|
| Maximum collector current (IC) | 15 A |
| Saturation voltage (VCE(sat)) at 25 °C | 1.5 V |
| Gate‑emitter voltage (VGE) | +20 V |
| Power dissipation at 25 °C | 35.7 W |
| Junction‑to‑case thermal resistance (RthJC) | 4.2 K/W |
| Short‑circuit withstand time | 5 µs |
The device is rated for a maximum collector‑emitter voltage of 600 V.
Typical VCE(sat) is about 1.5 V at a junction temperature of 25 °C.
The short‑circuit withstand time is specified as 5 µs.
The device can dissipate up to 35.7 W when the case temperature is 25 °C.
