SPW20N60CFD is a high voltage power transistor from Dinghao. Its features include low gate charge, extreme dv/dt and extremely low reverse recovery charge.

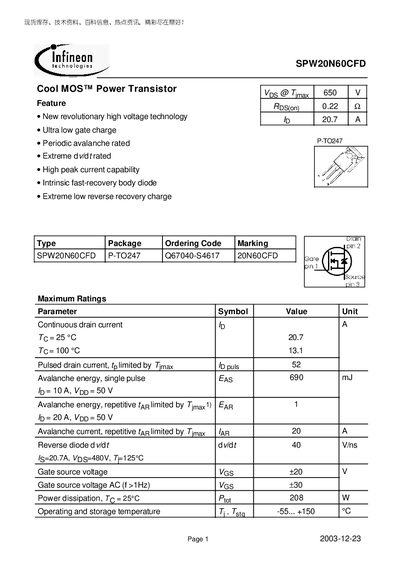

The SPW20N60CFD is a Cool MOS™ power transistor from Infineon, featuring a 850 V rating, low gate charge and high peak current capability. The document provides maximum ratings, thermal characteristics, and detailed electrical parameters for design use.
Key sections cover maximum ratings, thermal resistance, electrical characteristics, typical output curves, gate‑charge data, avalanche SOA, breakdown voltage, capacitances and package information, concluding with legal and contact details.
| Continuous drain current (Id) | 20.7 A |
|---|---|
| Pulsed drain current (Id,puls) | 52 A |
| Power dissipation at 25 °C (Pd) | 208 W |
| Thermal resistance junction‑to‑case (Rjc) | 0.6 K/W |
The device can conduct a continuous drain current of 20.7 A at a case temperature of 25 °C.
It can dissipate up to 208 W when the case temperature is 25 °C.
