The SPW47N60S5 is a power transistor in P-TO247 package. Its maximum voltage is 600V and the minimum on-resistance is 0.07 Ω. The maximum current is 47A.

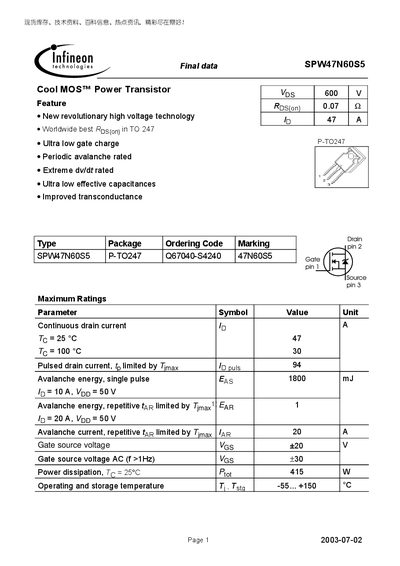

The SPW47N60S5 is a Cool MOS power transistor with a 600 V drain‑source voltage rating and a continuous drain current of 47 A. It features ultra‑low gate charge, low on‑state resistance and high transconductance, making it suitable for high‑power applications.
The document lists maximum ratings, thermal characteristics, detailed electrical parameters such as breakdown voltage, gate threshold, capacitances, and avalanche energy, as well as typical transient thermal data and safe operating area curves.
| Continuous drain current (Id) at 25 °C | 47 A |
|---|---|
| Pulsed drain current | 94 A |
| Avalanche energy (single pulse) | 1800 mJ |
| Power dissipation at 25 °C | 415 W |
The maximum continuous drain current is 47 A at 25 °C.
A single pulse can deliver up to 1800 mJ of avalanche energy.
