SPW20N60CFD is a power transistor from Dinghao. Its maximum voltage is 650V and rated current is 20.7A. The transistor has ultra low gate charge, extreme low reverse recovery charge, high peak current capability, intrinsic fast-recovery body diode etc.

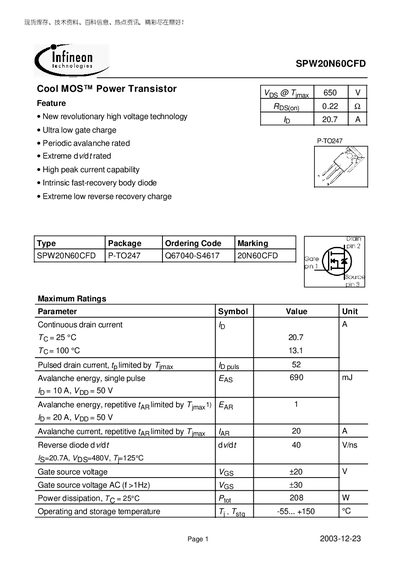

This document details the key electrical characteristics of the Infineon SPW20N60CFD Cool MOS™ power transistor, including maximum ratings such as continuous drain current, power dissipation, and avalanche energy. It also lists thermal parameters, on‑state resistance, gate charge, and various characteristic curves.
Additional sections cover typical output and transfer characteristics, avalanche safe‑operating‑area, body‑diode forward characteristics, and capacitance values. The final pages contain package information, publication data, and legal notices from Infineon Technologies AG.
