SPW47N60C2 is a power transistor from Dinghao brand. Its features are new revolutionary high voltage technology, best RDS(on) in TO 247, ultra low gate charge, periodic avalanche rated, extreme dv/dt rated, ultra low effective capacitances and improved noise immunity.

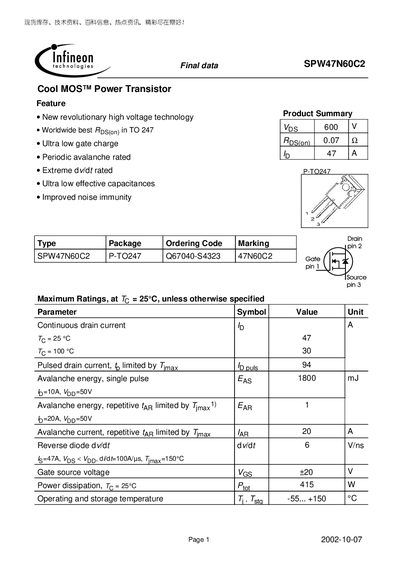

The Infineon SPW47N60C2 is a Cool MOS™ power transistor offered in a P‑TO247 package. The document provides detailed electrical characteristics such as maximum drain current, gate charge, and on‑state resistance, as well as thermal parameters and switching performance.
Key sections cover maximum ratings, thermal resistance, static and dynamic electrical characteristics, avalanche energy, and typical output and transfer curves. The data sheet also includes package dimensions and legal notices from Infineon Technologies AG.
| Maximum continuous drain current (Id) | 47 A |
|---|---|
| Maximum pulsed drain current (Id,pulse) | 94 A |
| Avalanche energy, single pulse (Eas) | 1800 mJ |
| Maximum power dissipation (Pd) at 25 °C | 415 W |
| Operating temperature range | -55 °C to +150 °C |
| Thermal resistance, junction‑case (RθJC) | 0.3 K/W |
| Thermal resistance, junction‑ambient (leaded) | 62 K/W |
| Gate‑source voltage rating (Vgs) | +20 V |
| Drain‑source on‑state resistance (Rds(on)) typical | 0.06 Ω |
| Total gate charge (Qg) | 220‑286 nC |
The maximum continuous drain current is 47 A at 25 °C.
The transistor is rated for a gate‑source voltage of up to +20 V.
It is supplied in a P‑TO247 package.
The device can operate from –55 °C up to +150 °C.
