The product is a power transistor with a rated voltage of 600V, a conduction resistance of 0.07 ohms and a maximum current of 47A. The product has ultra-low gate charge, ultra-low effective capacitance, ultra-high current carrying capacity, ultra-high dv/dt, periodic avalanche rating and improved transconductance characteristics.

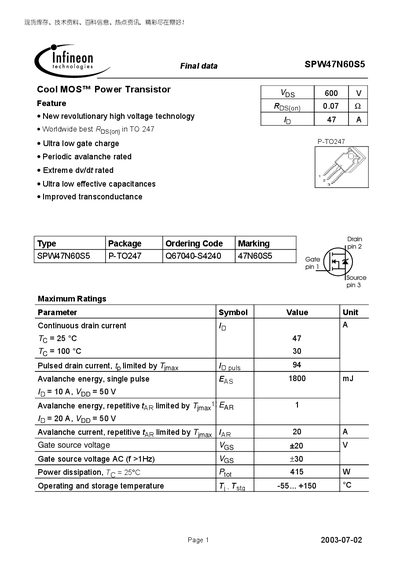

The SPW47N60S5 is a Cool MOS™ power transistor from Infineon Technologies, offered in a P‑TO247 package. The document provides comprehensive electrical specifications, maximum ratings, and thermal characteristics for designers.
Key sections cover continuous and pulsed drain current limits, breakdown voltage, on‑state resistance, capacitances, gate charge, avalanche energy, and typical output characteristics, along with package dimensions and tolerances.
| Continuous drain current (Id) | 47 A |
|---|---|
| Power dissipation at 25 °C (Pd) | 415 W |
The device can handle a continuous drain current of 47 A at 25 °C.
It can dissipate up to 415 W at a case temperature of 25 °C.
