This datasheet records the technical characteristics of the SPW32N50C3 product, including rated current, maximum voltage, maximum current, gate source voltage, switching frequency, operating temperature and other parameters.

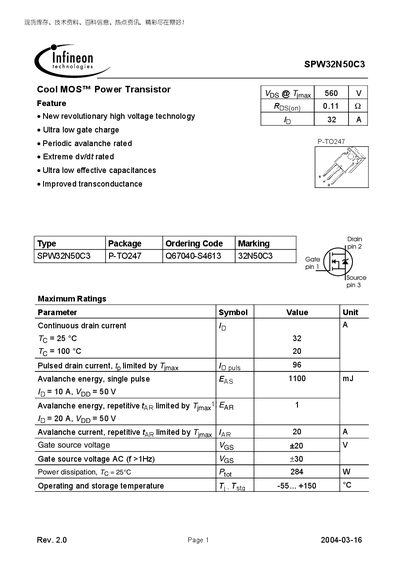

The SPW32N50C3 is a Cool MOS™ power transistor featuring a 560 V rating, 32 A continuous drain current and ultra‑low gate charge. It is supplied in a P‑TO‑247 package and includes detailed electrical, thermal and switching specifications.
The document provides maximum ratings, thermal resistance values, on‑state resistance, gate‑charge curves, avalanche energy data and typical output characteristics, enabling designers to assess suitability for high‑voltage, high‑current applications.
| Continuous drain current (Id) at 25 °C | 32 A |
|---|---|
| Pulsed drain current (Id,pulse) | 96 A |
| Power dissipation at 25 °C (Pd) | 284 W |
The maximum continuous drain current at 25 °C is 32 A.
The device can dissipate up to 284 W at a case temperature of 25 °C.
