SPW20N60C3 is a high voltage power transistor from Dinghao. Its maximum voltage is 650V, rated current is 20.7A, and it has the features of ultra-low gate charge, periodic avalanche rating, extreme dv/dt rating, high peak current capability and improved transconductance.

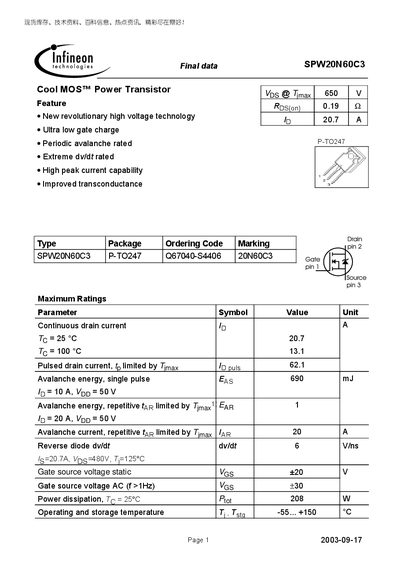

The SPW20N60C3 is a Cool MOS™ power transistor rated for 650 V and 20.7 A continuous drain current. It features ultra‑low gate charge, high peak current capability, and an ultra‑low dv/dt rating, packaged in a P‑TO‑247 case.
The document lists maximum ratings, thermal characteristics, detailed electrical parameters such as breakdown voltage, on‑state resistance, capacitances, and switching performance, along with package dimensions and legal disclaimer information.
| Avalanche energy (single pulse) | 690 mJ |
|---|
