SPW20N60C3 is a power transistor of Dinghao brand, its features are new revolutionary high voltage technology, ultra low gate charge, periodic avalanche rated, extreme dv/dt rated, high peak current capability, improved transconductance.
The SPW20N60C3 is a high‑voltage Cool MOS power transistor featuring ultra‑low gate charge, high peak current capability and an avalanche‑rated P‑TO‑247 package. It is designed for demanding applications requiring fast switching and robust voltage handling.

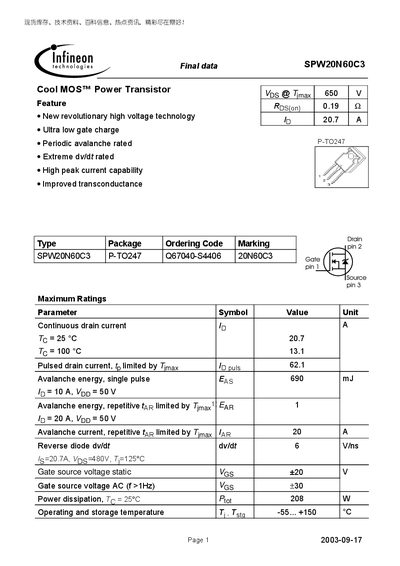

The datasheet lists maximum ratings, thermal characteristics, detailed electrical parameters, switching times, gate‑charge curves and typical output characteristics, enabling engineers to evaluate the device for their designs.
| Continuous drain current (Id) at 25 °C | 20.7 A |
|---|---|
| Gate‑source voltage static | +20 V |
| Power dissipation at 25 °C | 208 W |
| Thermal resistance junction‑to‑case | 0.6 K/W |
The device can conduct a continuous drain current of 20.7 A at 25 °C.
It can dissipate up to 208 W when the case temperature is 25 °C.
