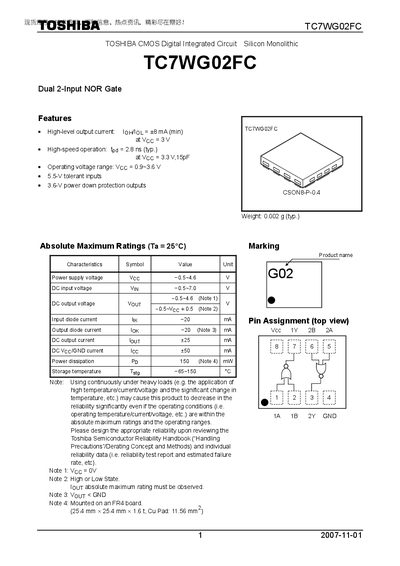

This document introduces the TC7WG02FC model TOSHIBA CMOS digital integrated circuit, which is a dual 2-input NOR gate. It features high-speed operation, high-level output current, and 5.5V tolerant inputs.
The TC7WG02FC is a Toshiba CMOS dual 2‑input NOR gate designed for general electronics applications such as computers, office equipment, and industrial robotics. It offers high‑level output current of up to 8 mA, a wide operating voltage range of 0.9 V to 3.6 V, and a typical propagation delay of 2.8 ns at 3.3 V with 15 pF load.
The document lists absolute maximum ratings, pin assignments, DC and AC electrical characteristics, package dimensions (CSON8‑P‑0.4, weight 0.002 g), and usage restrictions. It also includes a truth table, reliability notes, and compliance information for designers.
| High‑level output current (loH/loL) | +8 mA (min) at Vcc = 3 V |
|---|---|
| Operating voltage range | 0.9 V ~ 3.6 V |
| Propagation delay (tpd) | 2.8 ns (typ.) at Vcc = 3.3 V, 15 pF |
| Power dissipation | 150 mW |
| Weight | 0.002 g (typ.) |
| DC output current | +25 mA |
| Input diode current | -20 mA |
| Output diode current | -20 mA |
The TC7WG02FC operates from 0.9 V to 3.6 V.
The typical propagation delay is 2.8 ns at a supply voltage of 3.3 V with a 15 pF load.
