THSHIBA TC7WG02FU TC7WG02FK Manual

The TC7WG02FU/FK is a dual 2-input NOR gate produced by Toshiba. It features high-level output current, high-speed operation, wide operating voltage range, 5.5V tolerant inputs, and 3.6V power down protection outputs.

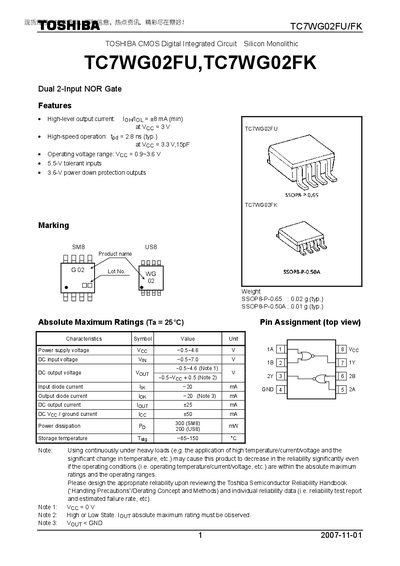

THSHIBA TC7WG02FU TC7WG02FK Manual - cover page
Brand
Toshiba
Category
Other Electronics
Document type
Datasheet
Language
English
Pages
7
File format
PDF
File size
207 KB
Published
01 April, 2012
Updated
30 September, 2023
MD5 checksum
42B177FD2920EBC47B93297686364452

About this manual

The Toshiba TC7WG02FU/FK is a dual 2‑input NOR gate offered in SSOP8 packages. It provides high‑level output current of at least 8 mA and operates over a wide voltage range of 0.9 V to 3.6 V.

The document includes electrical and AC characteristics, pin assignments, package dimensions, and usage restrictions. It is intended for general electronics applications and outlines reliability and safety considerations for designers.

What's inside

  • Features
  • Pin Assignment
  • Electrical Characteristics
  • Operating Ranges
  • Package Dimensions
  • AC Characteristics
  • Restrictions on Product Use

Specifications

High‑level output current≥8 mA (min)
Propagation delay (tpd)2.8 ns (typ.)
Operating voltage range (Vcc)0.9 V ~ 3.6 V
Operating temperature range-40 °C ~ 85 °C
Package weight (SSOP8‑P‑0.65)0.02 g (typ.)
Package dimensions (SSOP8‑P‑0.65)2.94 mm × 0.65 mm

Frequently asked questions

What is the typical propagation delay of the TC7WG02FU/FK?

The typical propagation delay is 2.8 ns.

What temperature range can the device operate in?

It operates from –40 °C to 85 °C.
