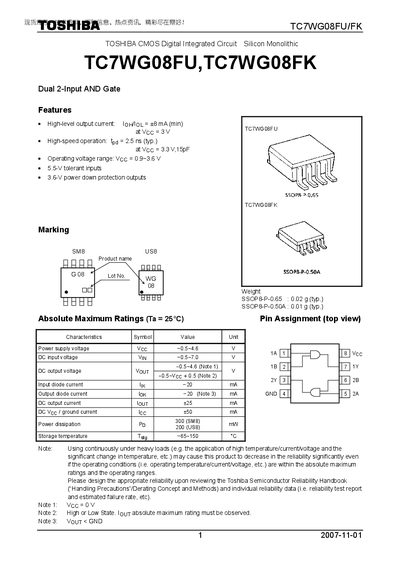

TC7WG08FU/FK is a dual 2-input AND gate produced by Toshiba with high output current, high-speed operation, wide operating voltage range, 5.5V input tolerance, and 3.6V power down protection
The TC7WGO8FU/TC7WG08FK is a Toshiba CMOS dual 2‑input AND gate offering high‑level output current of up to +8 mA and a typical propagation delay of 2.5 ns at 3.3 V supply. It operates over a wide voltage range (0.9‑3.6 V), features 5.5‑V tolerant inputs and 3.6‑V power‑down protection on the outputs, and is supplied in a compact SSOP‑8 package.
The device is intended for general electronics applications such as computers, office equipment, measuring instruments and industrial robotics. Users must observe the absolute maximum ratings and reliability guidelines provided in Toshiba’s Semiconductor Reliability Handbook to ensure safe and reliable designs.
| High‑level output current | +8 mA at VCC=3.3 V |
|---|---|
| Propagation delay (tpd) | 2.5 ns typ. |
| Operating voltage range (VCC) | 0.9 V ~ 3.6 V |
| Input tolerance | 5.5‑V tolerant inputs |
| Power‑down protection output voltage | 3.6‑V |
| Package type | SSOP8‑P‑0.65 (0.02 g typ.) |
| Absolute maximum input voltage | -0.5 V ~ 7.0 V |
The typical propagation delay is 2.5 ns.
It operates from 0.9 V to 3.6 V supply.
The absolute maximum input voltage is –0.5 V to 7.0 V.
