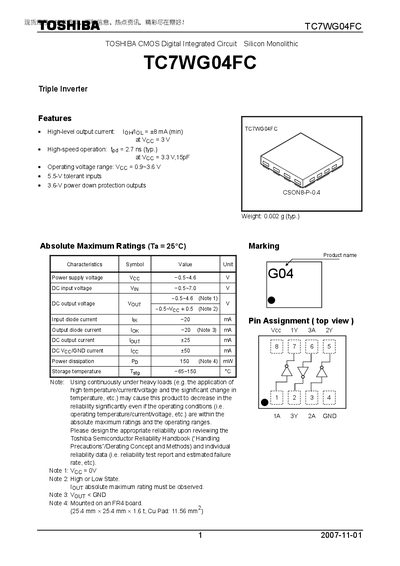

TC7WG04FC is a triple inverter produced by Toshiba. It features high-level output current, high-speed operation, wide operating voltage range, input voltage tolerance of 5.5V and output voltage tolerance of 3.6V.
The TC7WGO04FC is a triple inverter CMOS digital integrated circuit from Toshiba. It offers high‑level output currents of up to +8 mA, high‑speed operation with a typical propagation delay of 2.7 ns, and operates over a supply range of 0.9 V to 3.6 V.
The document lists absolute maximum ratings, detailed DC and AC electrical characteristics, package dimensions (25.4 mm × 25.4 mm × 1.6 mm), and important restrictions, noting that the device is not intended for safety‑critical or high‑reliability applications such as medical or aerospace equipment.
| High-speed propagation delay | 2.7 ns (typ.) |
|---|---|
| Operating voltage range | 0.9 V to 3.6 V |
| Power supply voltage range | -0.5 V to 4.6 V |
| Input voltage range | -0.5 V to 7.0 V |
| Package size | 25.4 mm × 25.4 mm × 1.6 mm |
| Weight | 0.002 g (typ.) |
The device operates from 0.9 V up to 3.6 V.
The package measures 25.4 mm × 25.4 mm × 1.6 mm.
