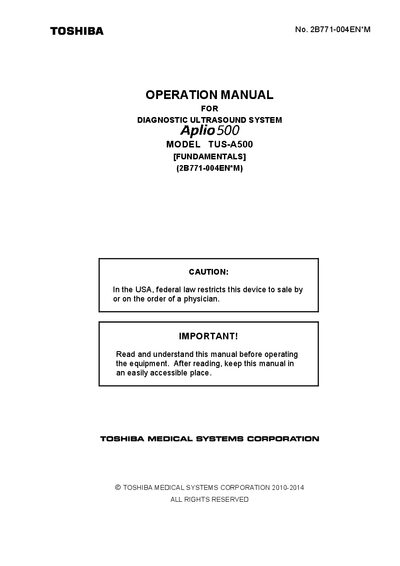

The Toshiba TUS-A500 operation manual provides detailed instructions for safe setup, use, and maintenance of the diagnostic ultrasound system.
This operation manual describes the procedures for preparing, operating, inspecting, and maintaining the Toshiba TUS-A500 diagnostic ultrasound system. It includes safety information, system configuration, and detailed instructions for each examination mode.
The manual also covers power and environmental requirements, transducer handling, screen and menu navigation, and data storage, ensuring reliable performance in clinical settings.
| Power line voltage (USA) | 120 VAC ±10% |
|---|---|
| Power consumption (USA) | 1440 VA |
| Ambient temperature (operating) | 10 °C to 35 °C |
| Relative humidity (operating) | 35 % to 80 % (no condensation) |
| External dimensions (width) | 580 ±20 mm |
| System mass | Approximately 145 kg |
The system operates on 120 VAC ±10% in the USA and 220‑240 VAC ±10% in Europe.
Connect the power cable and protective grounding, then turn on the power as described in the manual.
The system can be used in an ambient temperature range of 10 °C to 35 °C.
The system weighs approximately 145 kg without optional units.
