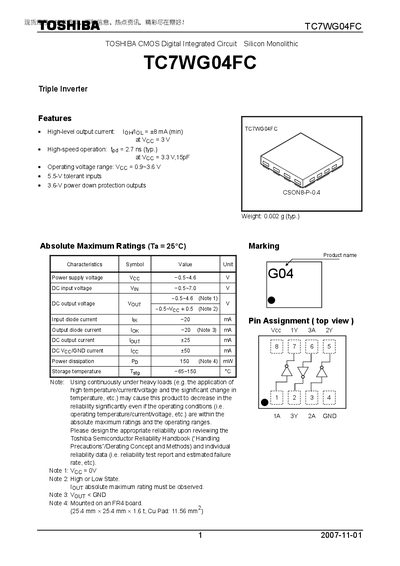

This document is the datasheet of TC7WG04FC, introducing the features and applications of the product.
The TC7WG04FC is a Toshiba CMOS triple inverter integrated circuit offering high‑level output current of up to 8 mA, high‑speed operation with a typical propagation delay of 2.7 ns, and a wide operating voltage range of 0.9 V to 3.6 V. Key features include 5.5‑V tolerant inputs, power‑down protection, and a compact CSON8‑P‑0.4 package.
The device is intended for general electronics applications such as computers, office equipment, and industrial robotics. Toshiba advises against use in safety‑critical or high‑reliability systems (e.g., medical, aerospace, or traffic control) and requires compliance with applicable safety and environmental regulations.
| High‑level output current | +8 mA (min) at Vcc = 3 V |
|---|---|
| Propagation delay (tpd) | 2.7 ns (typ.) |
| Operating voltage range | 0.9 V ~ 3.6 V |
| Power dissipation | 150 mW |
| Storage temperature | -65 °C ~ 150 °C |
| Package weight | 0.002 g (typ.) |
The device can source up to +8 mA (minimum) at a supply voltage of 3 V.
It operates with a supply voltage from 0.9 V to 3.6 V.
The IC can be stored between –65 °C and +150 °C.
Yes, Toshiba advises against using the device in applications such as medical instruments, aerospace, traffic control, or any system where failure could cause loss of life or injury.
