TC7WG04FU/FK is a triple inverter produced by Toshiba. It has the characteristics of high-level output current, high-speed operation, wide operating voltage range, input tolerance of 5.5V, and output tolerance of 3.6V.

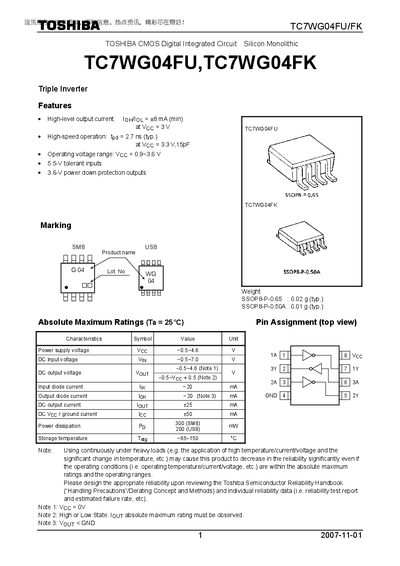

This document describes the Toshiba TC7WG04FU/FK CMOS triple inverter, a high‑speed, low‑power digital integrated circuit. It lists the device features, absolute maximum ratings, pin assignments, and detailed DC and AC electrical characteristics.
Package information, weight, and recommended usage guidelines are also included, along with restrictions for applications where reliability or safety is critical. The data is intended for designers of general electronics such as computers, office equipment, and industrial robotics.
| High‑level output current | 8 mA (min) |
|---|---|
| Operating voltage range (Vcc) | 0.9 V to 3.6 V |
| Package type | SSOP8‑P‑0.65 (typical dimensions 2.94 mm × 0.65 mm) |
| Weight (typical) | 0.02 g |
The device operates from 0.9 V to 3.6 V supply voltage.
The high‑level output current is specified as 8 mA minimum.
