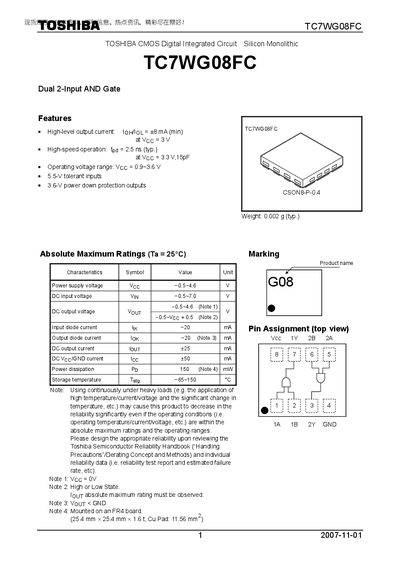

TC7WG08FC is a CMOS digital integrated circuit from Toshiba, using silicon monolithic process, with high level output current, high speed operation, wide operating voltage range, high input voltage tolerance and so on.
The TC7WG08FC is a CMOS dual 2‑input AND gate from Toshiba, offering high‑level output current, low‑level output capability, and high‑speed operation. The device operates over a wide voltage range and includes built‑in protection features.
The document provides detailed electrical characteristics, package dimensions, and usage restrictions, helping designers integrate the part safely into electronic equipment such as computers, office devices, and industrial robotics.
| Operating voltage range | 0.9–3.6 V |
|---|---|
| High‑level output current | ≥8 mA (min) at Vcc = 3 V |
| Propagation delay (tpd) | 2.5 ns typ. |
| Power dissipation | 150 mW |
| Storage temperature | -65 °C to 150 °C |
| Package dimensions (CSON8‑P‑0.4) | 1.35 mm × 0.05 mm |
The device can operate up to 3.6 V (Vcc = 0.9–3.6 V).
Typical propagation delay is 2.5 ns.
The package (CSON8‑P‑0.4) measures 1.35 mm by 0.05 mm.
The high‑level output current is at least 8 mA when Vcc is 3 V.
