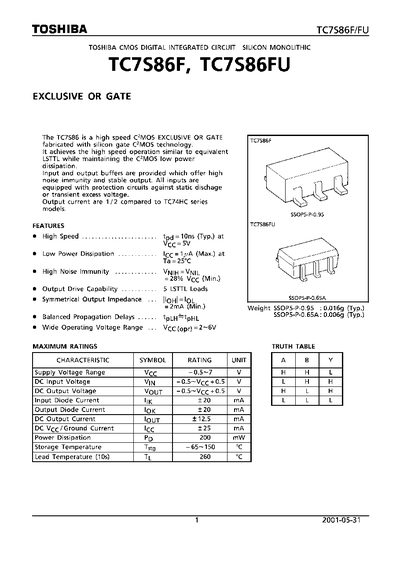

The TC7S86F/FU is a high‑speed C7MOS exclusive‑OR gate offering low power dissipation, high noise immunity, and balanced propagation delays. It includes input protection and output drive capability suitable for a wide operating voltage range.
The document provides electrical characteristics, recommended operating conditions, package dimensions, and usage restrictions for general electronics applications.
| Supply Voltage Range | 2 V ~ 6 V |
|---|---|
| Operating Temperature | -40 °C ~ 85 °C |
| Power Dissipation | 200 mW |
| Storage Temperature | -65 °C ~ 150 °C |
| Lead Temperature (10 s) | 260 °C |
The device operates with a supply voltage from 2 V to 6 V.
It is specified for operation between –40 °C and 85 °C.
The maximum power dissipation is 200 mW.
The device can be stored from –65 °C to 150 °C.
