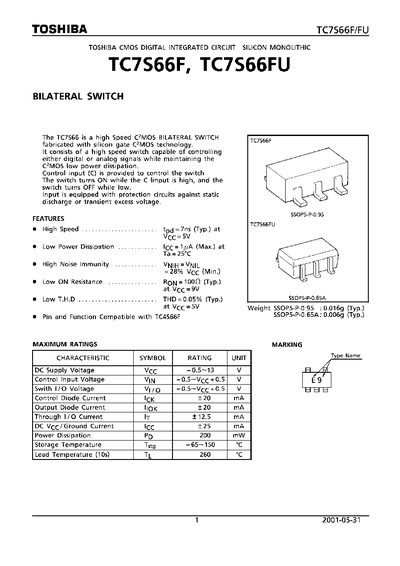

The TC7S66F/FU is a high‑speed CMOS bilateral switch designed for both digital and analog signal control while maintaining low power dissipation. It features a typical ON resistance of 1 kΩ, a propagation delay of about 7 ns, and high noise immunity, making it suitable for a wide range of general electronics applications.
The device is offered in SSOP5‑P‑0.95 and SSOP5‑P‑0.65 packages with typical dimensions of 2.1 mm × 0.65 mm × 0.1 mm and a weight of 0.016 g (typ). Electrical ratings include a supply voltage range of –0.5 V to 13 V, a control‑input range of –0.5 V to VCC + 0.5 V, and a maximum power dissipation of 200 mW. The datasheet also lists recommended operating conditions, pin assignments, and usage restrictions.
| Typical ON resistance (Ron) | 1 kΩ (typ) at VCC = 9 V |
|---|---|
| Typical propagation delay (tod) | 7 ns (typ) at VCC = 5 V |
| Power dissipation (PD) | 200 mW (max) |
| Supply voltage range | -0.5 V to 13 V (DC) |
| Control input voltage range | -0.5 V to VCC + 0.5 V |
| Operating temperature range | -40 °C to 85 °C |
| Storage temperature range | -65 °C to 150 °C |
| Package dimensions (SSOP5‑P‑0.95) | 2.1 mm × 0.95 mm × 0.1 mm (typ) |
The typical ON resistance is 1 kΩ at a supply voltage of 9 V.
The typical propagation delay is 7 ns when the supply voltage is 5 V.
The device operates with a supply voltage from 2 V to 12 V (recommended) and a DC rating of –0.5 V to 13 V.
It is offered in an SSOP5‑P‑0.95 package measuring approximately 2.1 mm × 0.95 mm × 0.1 mm (typ).
