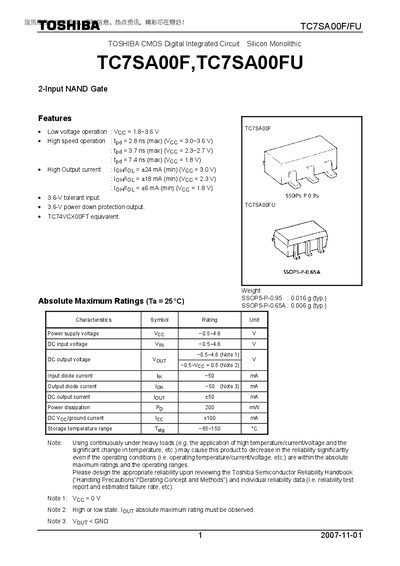

The document provides the electrical specifications for the Toshiba TC7SA00F/TC7SA00FU 2‑input NAND gate, including voltage ranges, output current, propagation delay, and leakage currents. It also lists the absolute maximum ratings, operating temperature limits, and recommended design considerations.
Package information such as dimensions, weight, and package type (SSOP5‑P‑0.95 and SSOP5‑P‑0.65A) is included, along with a section on restrictions for product use and safety guidelines for designers.
| Power supply voltage (Vcc) | 1.8‑3.6 V |
|---|---|
| High output current (IoH/IoL) at Vcc=3.0 V | 24 mA (min) |
| Propagation delay (tpd) max | 2.8 ns |
| Input voltage range (VIN) | -0.5 V to 4.6 V |
| Storage temperature range (Tstg) | -65 °C to 150 °C |
| Typical weight (SSOP5‑P‑0.95) | 0.016 g |
| Package type | SSOP5‑P‑0.95 |
The device operates with a supply voltage (Vcc) from 1.8 V to 3.6 V.
The maximum propagation delay is 2.8 ns when Vcc is between 3.0 V and 3.6 V.
The device is specified for an operating temperature range of –40 °C to 85 °C.
The SSOP5‑P‑0.95 package weighs about 0.016 g (typical).
