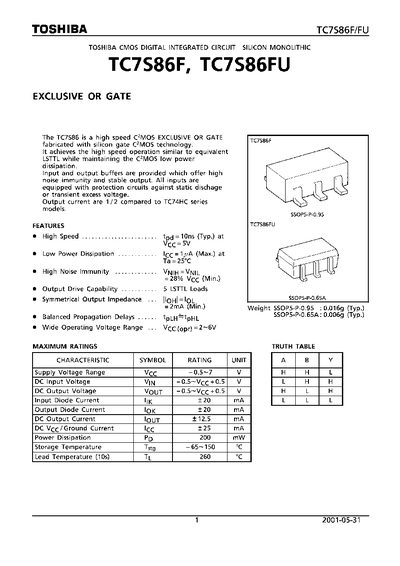

The TC7S86F/FU is a high‑speed C?MOS exclusive‑OR gate offering low power dissipation, high noise immunity, and balanced propagation delays. It includes input protection, symmetrical output impedance, and a wide operating voltage range.
The document lists maximum ratings, recommended operating conditions, electrical characteristics, package dimensions, and usage restrictions for general electronics applications. It also provides a truth table and notes on handling and reliability.
| Supply Voltage (Vcc) | 5 V |
|---|---|
| Supply Current (Icc) | 1 µA max |
| Supply Voltage Range | 2–6 V |
| Input Voltage Range | 0–Vcc |
| Operating Temperature | -40 °C to 85 °C |
| Propagation Delay (typ) | 10 ns |
| Power Dissipation | 200 mW |
| Storage Temperature | -65 °C to 150 °C |
| Lead Temperature (10 s) | 260 °C |
The device operates with a supply voltage between 2 V and 6 V.
Typical propagation delay (tpLH) is about 10 ns.
Maximum power dissipation is specified as 200 mW.
The recommended operating temperature is from –40 °C to 85 °C.
