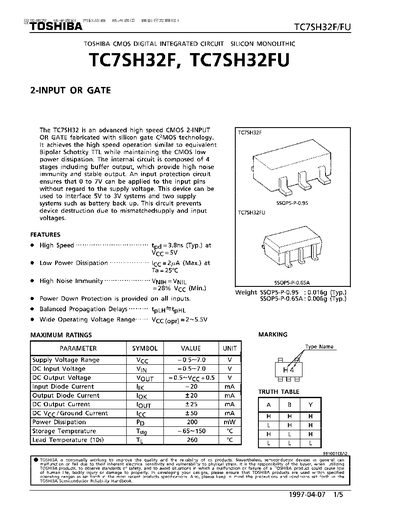

The TC7SH32F/FU is a high‑speed CMOS 2‑input OR gate designed for low power dissipation and wide operating voltage range. It includes input protection for 0 V to 7 V and can interface 5 V to 3 V systems or dual‑supply configurations.
The document lists maximum ratings, recommended operating conditions, DC and AC electrical characteristics, pin assignments, and package dimensions for the SSOP5‑P‑0.95 and SSOP5‑P‑0.65 variants.
| Input Voltage Range | -0.5 V to 7.0 V |
|---|---|
| Output Voltage Range | -0.5 V to VCC+0.5 V |
| Power Dissipation | 200 mW |
| Storage Temperature | -65 °C to 150 °C |
| Package Types | SSOP5‑P‑0.95, SSOP5‑P‑0.65 |
| Propagation Delay | tpLH = tpHL (balanced) |
It is offered in SSOP5‑P‑0.95 and SSOP5‑P‑0.65 packages.
Typical power dissipation is 200 mW.
The IC is rated for operation from –40 °C to 85 °C.
