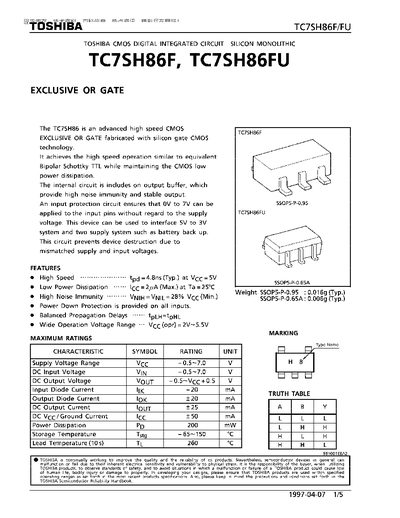

The TC7SH86F/FU is a high‑speed CMOS exclusive‑OR gate designed for fast logic applications while maintaining low power consumption. It includes an output buffer for high noise immunity and an input protection circuit that tolerates up to 7 V on the inputs.
The device is offered in two SSOP packages (SSOP5‑P‑0.95 and SSOP5‑P‑0.65A) and operates from 2.0 V to 5.5 V. Typical specifications include a 4.8 ns propagation delay, 200 mW maximum power dissipation, and operation over –40 °C to 85 °C. Detailed electrical characteristics and pin assignments are provided for design integration.
| Typical propagation delay | 4.8 ns (Typ.) at Vcc = 5 V |
|---|---|
| Power dissipation | 200 mW |
| Supply voltage range | 2.0 V – 5.5 V |
| Input leakage current | -20 mA |
| Output current | 25 mA |
| Operating temperature range | -40 °C – 85 °C |
| Package weight (typical) | 0.016 g |
| Package type | SSOP5‑P‑0.95 / SSOP5‑P‑0.65A |
The typical propagation delay is 4.8 ns at a supply voltage of 5 V.
It operates from –40 °C to 85 °C.
The IC is offered in SSOP5‑P‑0.95 and SSOP5‑P‑0.65A packages.
The device can be powered up to 5.5 V (2.0 V – 5.5 V operating range).
