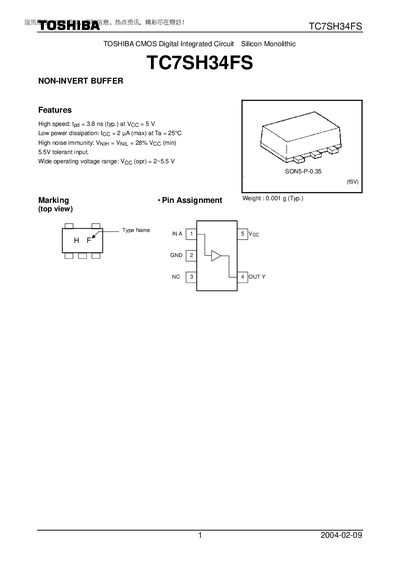

This document describes the features and characteristics of the TC7SH34FS model, including high speed, low power dissipation, high noise immunity, wide operating voltage range, etc.
The TC7SH34FS is a CMOS non‑inverting buffer offering high speed (tpd = 3.8 ns typ.) and ultra‑low power consumption (Icc = 2 pA max). It operates over a wide supply range of 2 V to 5.5 V and features 5.5 V tolerant inputs, making it suitable for a variety of general‑purpose electronic applications.
The document lists maximum ratings, recommended operating conditions, DC and AC electrical characteristics, and package dimensions. It also includes usage restrictions, emphasizing compliance with safety standards and avoiding unintended high‑risk applications such as aerospace or medical devices.
| Propagation delay (tpd) | 3.8 ns typ. |
|---|---|
| Supply voltage range (Vcc opr) | 2~5.5 V |
| Supply current (Icc) | 2 pA max |
| Power dissipation (Pp) | 50 mW |
| Storage temperature (Tstg) | -65~150 °C |
| Package weight | 0.001 g typ. |
The typical propagation delay is 3.8 ns.
It operates from 2 V to 5.5 V.
The maximum power dissipation is 50 mW.
The device can be stored from –65 °C to 150 °C.
