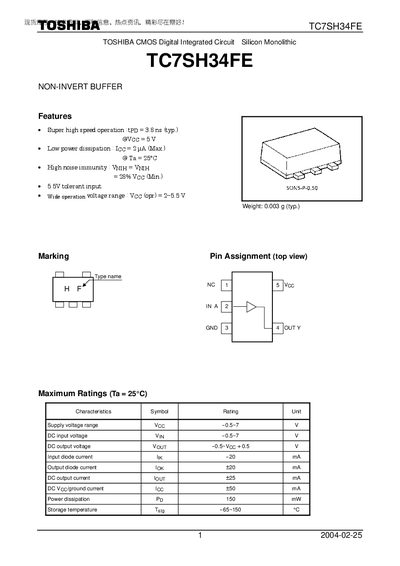

This document introduces the technical information of TC7SH34FE from Dinghao, including the features of non-inverting buffer, weight, high-speed operation, low power dissipation, high noise immunity, and 5.5V tolerant input. It also provides detailed information such as pin assignment, maximum ratings, logic diagram, truth table, recommended operating conditions, and electrical characteristics.
The TC7SH34FE is a CMOS non‑inverting buffer offering super‑high speed operation (typical propagation delay 3.8 ns) and low power dissipation. It is supplied in a compact SON5‑P‑0.50 package weighing only 0.003 g (typ.).\n\nThe datasheet lists detailed electrical characteristics, including a supply voltage range of 2 V to 5.5 V, maximum output current of 25 mA, power dissipation of 150 mW, and an operating temperature range from –40 °C to 85 °C. Usage restrictions and handling guidelines are also provided.
| Typical propagation delay | 3.8 ns |
|---|---|
| Supply voltage range | 2 V to 5.5 V |
| Power dissipation | 150 mW |
| Maximum output current | +25 mA |
| Operating temperature range | -40 °C to 85 °C |
| Package type | SON5-P-0.50 |
| Weight | 0.003 g (typ.) |
The typical propagation delay is 3.8 ns.
It operates with a supply voltage from 2 V to 5.5 V.
The maximum output current is +25 mA.
It can operate from –40 °C to 85 °C.
