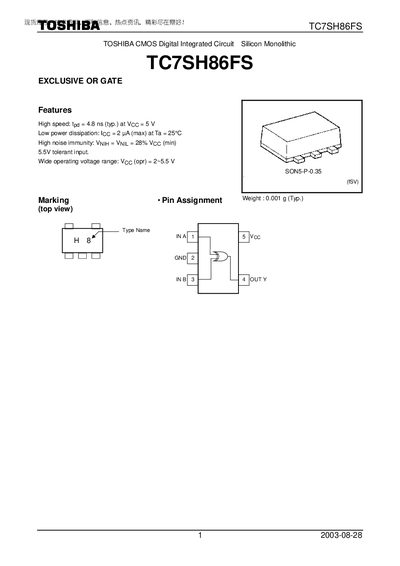

This document describes the features and characteristics of TC7SH86FS, a TOSHIBA CMOS digital integrated circuit silicon monolithic, including high speed, low power dissipation, high noise immunity, wide operating voltage range, etc.
The TC7SH86FS is a CMOS exclusive‑OR gate IC from Toshiba. It offers high‑speed operation with a typical propagation delay of 4.8 ns at a 5 V supply and very low power consumption, making it suitable for a wide range of electronic applications.
The document lists maximum ratings, recommended operating conditions, detailed DC and AC electrical characteristics, package dimensions, and usage restrictions. It is intended for designers of general electronics such as computers, office equipment, and industrial robotics.
| Typical propagation delay | 4.8 ns at Vcc = 5 V |
|---|---|
| Maximum supply current | 2 pA (max) at 25 °C |
| Input tolerance | 5.5 V tolerant |
| Operating voltage range | 2 V to 5.5 V |
| Supply voltage rating | -0.5 V to 7.0 V |
| Package weight | 0.001 g (typ.) |
The typical propagation delay is 4.8 ns when powered at 5 V.
The device can tolerate a supply voltage from –0.5 V up to 7.0 V.
It draws a maximum of 2 pA at 25 °C.
Yes, the inputs are tolerant up to 5.5 V.
