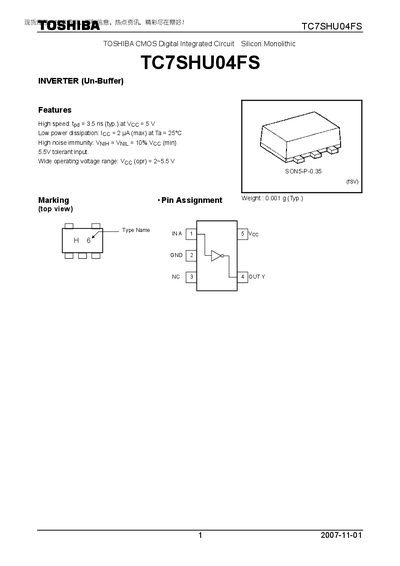

TC7SHU04FS is a CMOS digital integrated circuit produced by Toshiba. It has the characteristics of high speed, low power consumption, high noise immunity, 5.5V tolerant input and wide operating voltage range.
The TC7SHU04FS is a CMOS digital integrated circuit inverter with high‑speed operation (typical propagation delay 3.5 ns at Vcc = 5 V) and low power dissipation (Icc = 2 µA max at 25 °C). It operates over a wide supply range (‑0.5 V to 7.0 V) and supports 5.5 V tolerant inputs, making it suitable for general electronics applications.
The document lists absolute maximum ratings, detailed DC and AC electrical characteristics, package dimensions (SON5‑P‑0.35, 0.001 g typical), and extensive product‑use restrictions. Toshiba advises against using the device in safety‑critical or high‑reliability systems such as medical, aerospace, or transportation equipment.
| Typical propagation delay (tpg) | 3.5 ns at Vcc = 5 V |
|---|---|
| Maximum supply voltage (Voc) | -0.5 V to 7.0 V |
| Low power dissipation (Icc) | 2 µA max at 25 °C |
| Input voltage range (VIN) | 0 V to 5.5 V |
| Output voltage range (VOUT) | 0 V to Vcc |
| Operating temperature | -40 °C to 85 °C |
| Power dissipation (Pp) | 50 mW |
| Package weight | 0.001 g (typ.) |
The device can be powered from –0.5 V up to 7.0 V.
It is specified to operate between –40 °C and 85 °C.
