This document describes the features and characteristics of the TC7SHU04FE CMOS digital integrated circuit produced by Dinghao, including super high-speed operation, low power dissipation, high noise immunity, and 5.5V tolerant input.

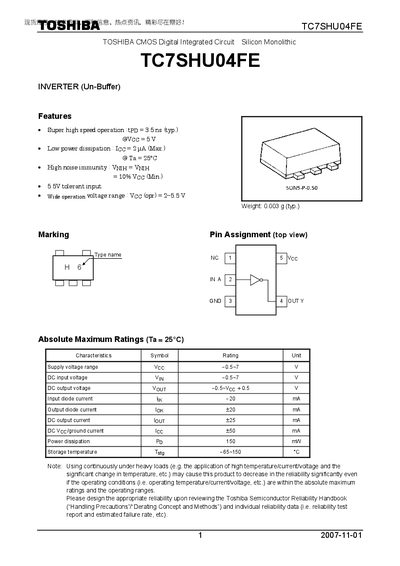

This document describes the Toshiba TC7SHU04FE CMOS digital integrated circuit, a high‑speed, low‑power inverter. It lists key features such as 3.5 ns typical propagation delay, 2 A maximum current, and wide operating voltage range.
The datasheet includes absolute maximum ratings, operating ranges, detailed DC and AC electrical characteristics, pin assignments, package dimensions, and important usage restrictions for safety‑critical applications.
| Supply voltage range | 2 V ~ 5.5 V |
|---|---|
| Input voltage range | 0 V ~ 5.5 V |
| Output voltage range | 0 V ~ V_OC |
| Operating temperature | -40 °C ~ 85 °C |
| Typical propagation delay (tPHL) | 3.5 ns |
| Power dissipation | 150 mW |
| Weight | 0.003 g (typ.) |
The device operates with a supply voltage from 2 V to 5.5 V.
It is rated for operation from –40 °C to +85 °C.
The typical propagation delay (tPHL) is about 3.5 ns.
Yes, it should not be used in safety‑critical or high‑reliability applications such as atomic energy, aircraft, medical instruments, or other equipment where failure could cause injury or loss of life.
